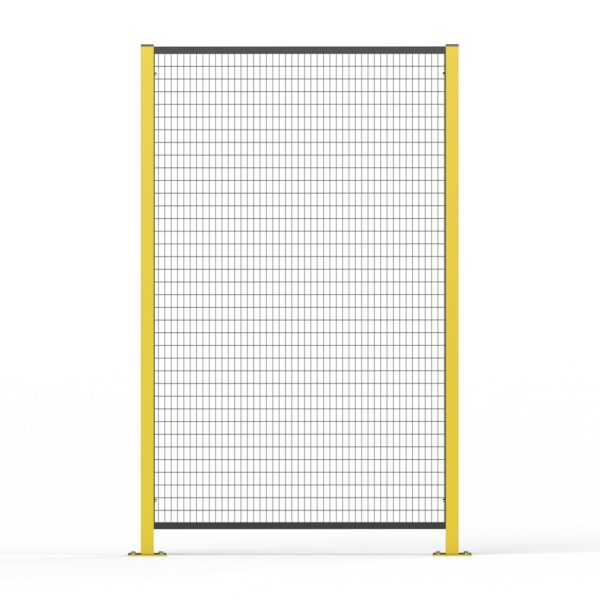

MeshSafe 1300H

The MeshSafe series is available in 3 different heights and 5 standard panel widths, making it suitable for most applications. Custom panel widths and doors are available.

Overall Height
1300mm
Panel Widths
300mm, 500mm, 800mm, 1000mm, 1200mm
Mesh Size
25x50mm
Swing and sliding gates available

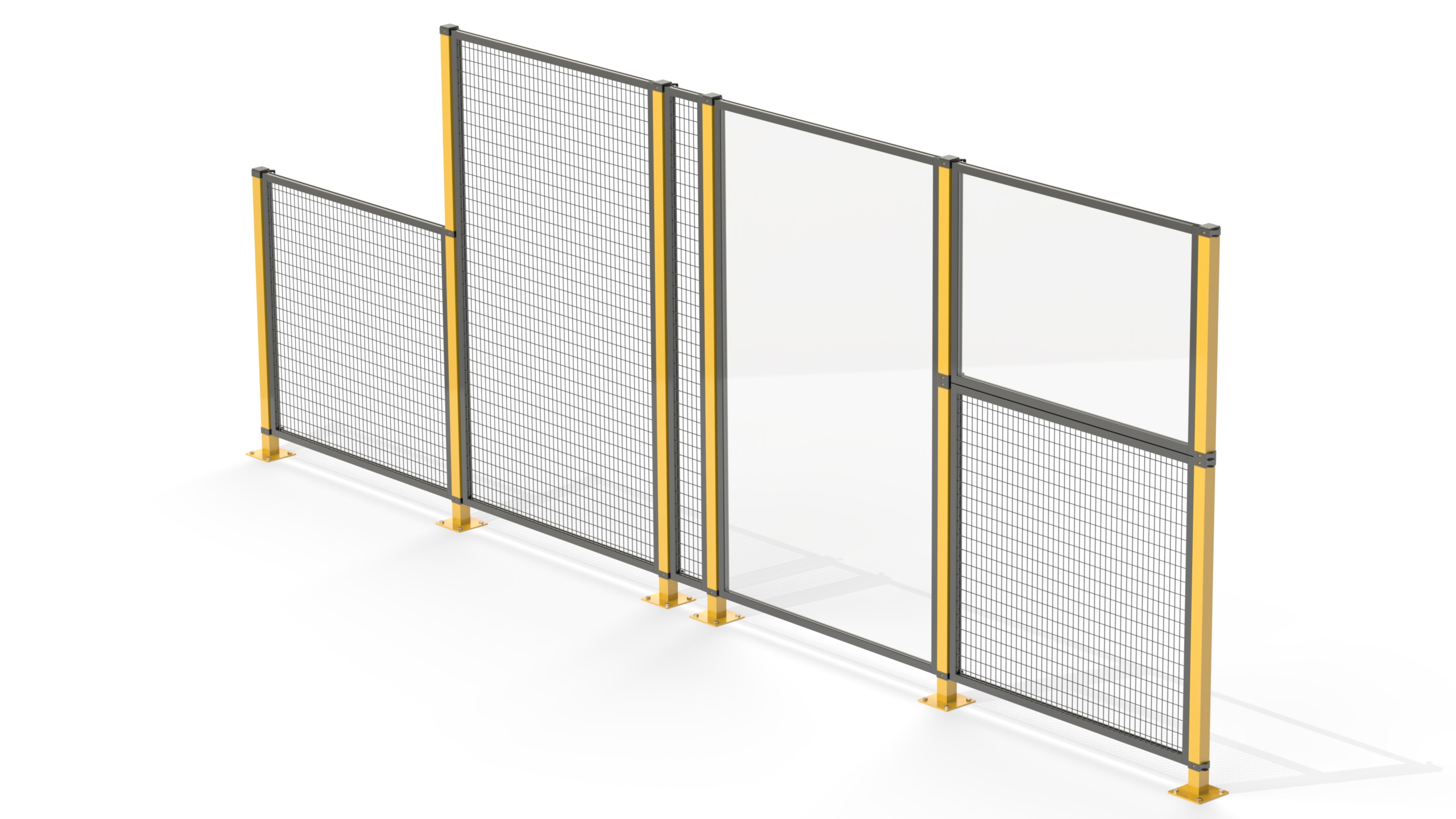

Dexters’ MeshSafe Machine Guard barrier system provides security and strength to protect you or your staff during machinery operations. The modular barrier system is fully customizable. Using  modular panel sizes, machine guarding is much simpler as the panels can be taken apart and reassembled using many options to suit virtually any situation. Our industrial safety fencing range is  an excellent choice and we will help you design machine guards to the AS/NZS 4024.1 standard.

Technical Specs

MeshSafe 1300-H MeshSafe 2000-H MeshSafe 2500-H
Overall Height 1300mm 2000mm 2500mm
Panel Widths 300mm, 500mm, 800mm, 1000mm, 1200mm 300mm, 500mm, 800mm, 1000mm, 1200mm 300mm, 500mm, 800mm, 1000mm, 1200mm
Mesh Size 25x50mm 25x50mm 25x50mm
